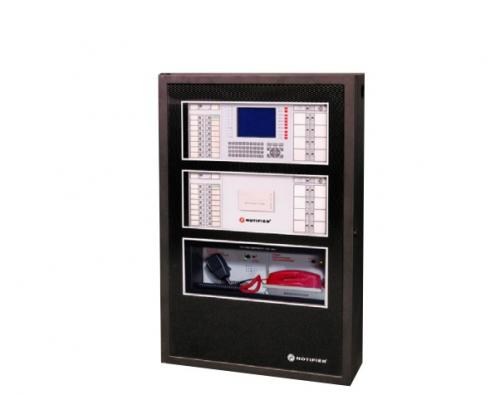

Trung tâm báo cháy 1 Loop NOTIFIER N6000

- The N-6000 is an intelligent Fire Alarm Control Panel designed for medium size facilities. Fire emergency detection and evacuation are extremely critical to life safety, and the N-6000 is ideally suited for these applications. The N-6000 is a new line of products from NOTIFIER.

- Two to eight isolated intelligent Signaling Line Circuits (SLC) Style 4 or 6.

- Up to 198 detectors (any mix of photo or thermal); OR 99 detectors (any mix of photo or thermal) and 99 modules (N.O. manual stations, two-wire smoke, notification, or relay) per SLC.

- 198 addressable devices per loop.

- Total capacity of 1,584 addressable devices per Fire Alarm Control Panel.

- Large 1060-character LCD backlit display (20 lines × 53 characters).

- Network option – supports N-6000 or N-NCS Network Control Station.

- Built-in Alarm, Trouble and Supervisory relays.

- N-VFT online/ offline program option.

- Built-in Degraded Mode option. In the event of a CPU failure, the system is capable of generate alarm if a fire condition is present.

- History files with 4,000-event capacity in nonvolatile memory.

Thông số kỹ thuật

- Primary input power, MPS-350W:

   + 220VAC, 50/60 Hz, 1.5 Amps; 110VAC, 50/60 Hz, 3.0 Amps;

   + Total output 24V power: 14.6 A in alarm;

   + General purpose power: 1.0A;

   + Battery charger ranges: 25AH – 55AH, use separate cabinet for batteries over 25AH;

   + Float Rate: 27.6V.

- Temperature and humidity ranges:

   + Temperature: 0 to 50 ºC;

   + Humidity: 5% to 95% non-condensing.
