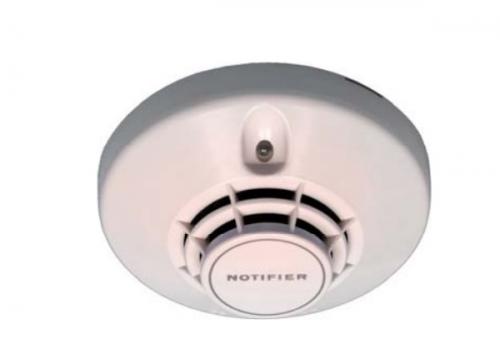

Đầu dò nhiệt NOTIFIER ND-751T-E

- ND-751T-E Intelligent Plug-in Thermal Detector is a new developed product by NOTIFIER® in order to meet the sophisticated market demands. This new thermal detector has embedded a Central Processing Unit (CPU), and is addressable and software addressing designed; with integral communication provide features that surpass conventional detectors. ND-751T-E detector is compatible with the NOTIFIER® N-6000 Fire Alarm Control Panel (FACP), and is used with B601 Intelligent Detector Base for connection.

- ND-751T-E detector is designed to provide open area protection, which applicable for areas such as residential buildings, office complexes, schools, college campuses and any others utilities.

- Sleek, low-profile, stylish design.

- State-of-the-art thermistor technology for fast response.

- Addressable by device.

- The LED can be latched on by code command from the control panel for an alarm indication. It can also be unlatched to the normal condition by code command.

- Stable communications techniques with noise immunity.

Thông số kỹ thuật

- Operating Temperature: -10ºC ~ 50ºC.

- Relative Humidity: 10% ~ 95%RH, non-condensing.

- Voltage Range: 15 ~ 32VDC.

- Standby Current: ≤ 450μA.

- Max. Alarm Current: 3.5mA.

- Alarm Temperature: 57ºC.

- Dimensions:

   + Diameter: 102mm;

   + Height (including base): 48mm.
