Giá: Liên hệ

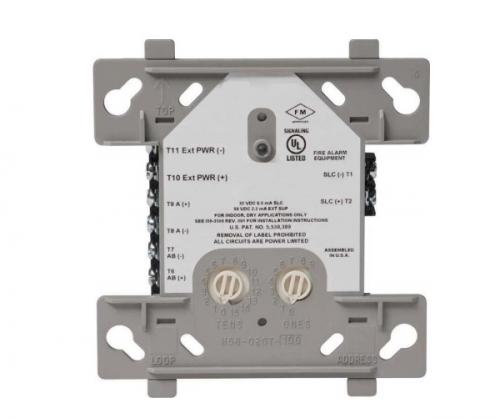

Module chuông báo NOTIFIER FCM-1

- The FCM-1 Addressable Control Module provides Notifier intelligent fire alarm control panels a circuit for Notification Appliances (horns, strobes, speakers, etc.). Addressability allows the FCM-1 to be activated, either manually or through panel programming, on a select (zone or area of coverage) basis.

- Built-in type identification automatically identifies these devices to the control panel.

- Internal circuitry and relay powered directly by two-wire SLC loop. The FCM-1 module requires power (for horns, strobes, etc.), or audio (for speakers).

- Integral LED “blinks” green each time a communication is received from the control panel and turns on in steady red when activated.

- LED blink may be deselected globally (affects all devices).

- High noise immunity (EMF/RFI).

- The FCM-1(A) may be used to switch 24-volt NAC power, audio (up to 70.7 Vrms).

- Wide viewing angle of LED.

- SEMS screws with clamping plates for wiring ease.

- Direct-dial entry of address 01– 159 for FlashScan loops, 01 – 99 for CLIP mode loops.

- Speaker, and audible/visual applications may be wired for Class B or A (Style Y or Z).

Thông số kỹ thuật

- Normal operating voltage: 15 to 32 VDC.

- Maximum current draw: 6.5 mA (LED on).

- Average operating current: 350 A direct poll, 375 A group poll with LED flashing, 485 A Max. (LED flashing, NAC shorted.).

- Maximum NAC Line Loss: 4 VDC.

- External supply voltage (between Terminals T10 and T11): Maximum (NAC): Regulated 24 VDC; Maximum (Speakers): 70.7 V RMS, 50W.

- Drain on external supply: 1.7 mA maximum using 24 VDC supply; 2.2 mA Maximum using 80 VRMS supply.

- Max NAC Current Ratings: For class B wiring system, the current rating is 3A; For class A wiring system, the current rating is 2A.

- Temperature range: 32°F to 120°F (0°C to 49°C).

- Humidity range: 10% to 93% non-condensing.

- Dimensions: 4.5-inch (114.3 mm) high x 4-inch (101.6 mm) wide x 1.25-inch (31.75 mm) deep. Mounts to a 4-inch (101.6 mm) square x 2.125-inch (53.975 mm) deep box.

- Accessories: SMB500 Electrical Box; CB500 Barrier.
