Trung tâm báo cháy 5 kênh NITTAN 2PD1-5L
Giá: Liên hệ
-
Mã sản phẩm: 2PD1-5L
- Bảo hành: 12 tháng
- Xuất xứ: Nhật Bản
- Nhãn Hiệu: Nittan
trợ giúp tư vấn khách hàng
024.62810015
0914 348 397 - 0326975555

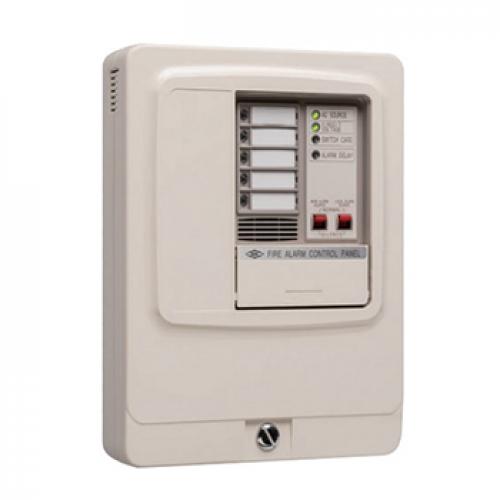

Trung tâm báo cháy 5 kênh NITTAN 2PD1-5L
- The 2PD1-5L is a conventional fire alarm panel with a stylish wall-mount design supplied in 5 zone format. All detector circuits will be indicated with lighting red LEDs in alarm conditions and flushing in open circuit fault conditions. Slide-in paper labels are included for clear zone identification. The alarm panel has an alarm delay function on detector circuits to reduce false alarms, including a delay ON/OFF function.
- Alarm delay function
+ Heat Detector: 20 sec.
+ Smoke Detector: 60 sec.
- Alarm delay ON/OFF switch function
- Supervision of detector lines and fault conditions.
- Energy saving technorogy for its running cost.
- Extra slim design.
- Light body using flame retardant ACS resin.
- High reliablility minimmizes maintenance cost.
- Equipped with surge absorbers.
- Re-sounding system.
- 1 output for zone alarm bells.
- 1 output for signal transfer to external facility.
- Easy wiring by Push-in terminals’ one-touch connection.
Thông số kỹ thuật
|
Model |
2PD1-5L |
|
AC Power |
220 VAC ±10% 50/60 Hz |
|
Standby Battery |
24VDC / 0.225 Ah, Sealed Type Ni-Cd battery |
|
Nominal Delay Time |
60 sec. (For smoke detector: 60 sec. For heat detector: 20 sec.) |
|
Dimensions |
W 240 x H330 x D 70 mm |
|
LED Indicators |
Zone alarm, AC power, Circuit voltage, Switch operation, Alarm |
|
Functions |
Circuit voltage monitoring, Cable break monitoring |
|
External Line Resistance |
50 Ω and less |
|
End of Line Device |
CRE |
|
Panel Alarm Sounder |
Piezoelectric buzzer, automatic re-sounding type |
|
Fire Alarm Transfer |
|
|
Output Current for Zone Alarm Bells |
125 mA @ 24 VDC (B-BC) |
|
Output Current for Indication Lamps |
25 VAC 300 mA (PL-PL’) |
|
Number of Connectable Detectors |
Standard type Smoke detector: Max. 20 /zone |
|
Connectable Manual Alarm Station |
2ME1A 2MH1A |
|
Connectable Annunciator Panel |
Model PSH x 1 unit |
|
Operating Temperature |
0°C to +40°C |
|
Primary Materials |
Flame retardant resin |
|
Body Color |
JPMA Color Code A22-90B Semi-gloss (off-white) |
