Tủ trung tâm báo cháy địa chỉ 4 Loop NITTAN NFU-7000
Giá: Liên hệ
-
Mã sản phẩm: NFU-7000
- Bảo hành: 12 tháng
- Xuất xứ: Nhật Bản
- Nhãn Hiệu: Nittan
trợ giúp tư vấn khách hàng
024.62810015
0914 348 397 - 0326975555

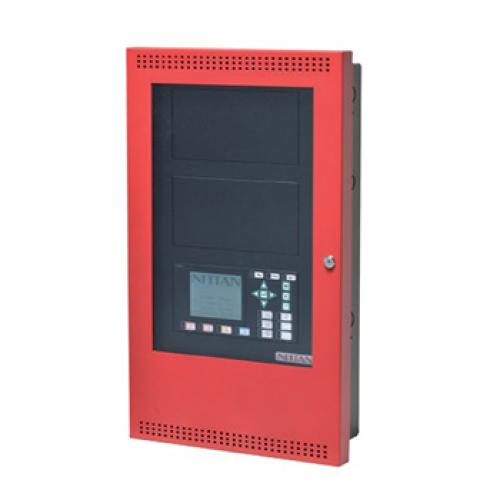

Tủ trung tâm báo cháy 4 Loop NITTAN NFU-7000
- Nittan’s SPERA NFU-7000 Network Fire Alarm Control Panel offers modular components to meet a wide variety of applications. Designed for peer-to-peer network communications, the NFU-7000 allows for a maximum of 63 nodes, while providing reliability, flexibility and expandability.
Fire Alarm Control
- One driver card capable of 2 loops is equipped as standard.
- NFU-7000 has capability of three driver cards storage (max 6 loops).
- One loop supports 254 addresses which can be wired in Class A (Style 6 or 7) or Class B (Style 4).
- Use of shielded cable is not required for SLC loops.
- Modular design.
- Four Class A/B (Style Z/Y) Notification Appliance Circuits rated at 1.7 Amps each.
- One Auxiliary power supply, rated at 1.7 Amps for 24 VDC and one resettable 4-wire power supply.
- Large 16 line x 40 character Back-lit LCD Display with user friendly menu.
- Programmable Switch Inputs which allow for multifunctional outputs.
- Four Status Queues with selector switches and LEDs for Alarm, Supervisory, Trouble and Monitor.
- Auxiliary relay contacts for Common Alarm, Common Supervisory and Common Trouble.
- RS-232 port for remote system printer.
- Two Event History Logs comprised of a 1000 alarm history log for alarm related events and a 6000 event history log for all events.
- Supports three configuration files (current, previous and next configuration) with “hot swap” support.
- Supports Conventional Hardwire Adder Modules.
- Built-in One Man Walk Test operation.
- Provides drift compensation for photoelectric smoke detectors.
- Capability to adjust sensitivity levels of intelligent smoke detectors.
- Real time 3D graphical monitoring and control by Nittan’s NFU-Graphic-monitor.
- BACnet support.
- Supports Boolean logic functions.
- Built-in Ethernet port.
- UL listed for Smoke Control.
- Manual Control Function.
- Input Simulation Function.
- Multiple group bypass function with built-in false alarm prevention technology
+ Network Node Bypass;
+ Node Outputs Bypass;
+ Input Zone Bypass;
+ Relay Disconnect;
+ Device/Circuit Bypass.
Network Features
- Up to 63 panels.
- Peer-to-peer network communications.
- Mutual surveillance/ 2 way control available.
- Class A (Style 6 or 7) or Class B (Style 4) wiring configuration.
- ARCNET protocol.
- Supports copper and/or fiber optic network cable.
