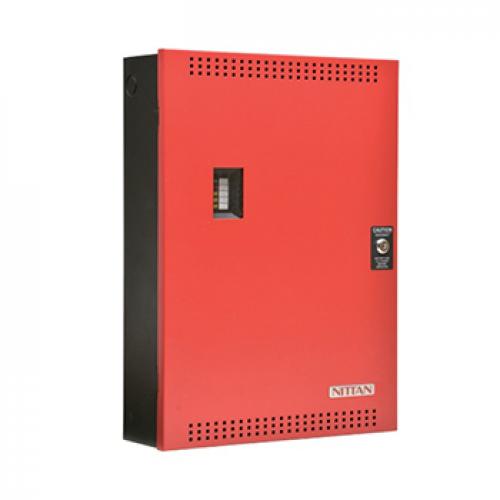

Bộ nguồn phụ 24VDC/6A NITTAN NFU-PS-10A

- Nittan’s NFU-PS-10A is an Auxiliary Power Supply/NAC Expander that works with listed SPERA series fire alarm control panels. Available in a 10Amp configuration, the NFU-PS-10A can extend the power capabilities of existing notification appliance circuits as well as provide power for other ancillary devices. In addition, the NFU-PS-10A has the ability to operate with any UL Listed conventional 24 VDC fire alarm control panel to provide Notification Appliance Circuit expansion.

- 10 Amp output.

- 120/ 240V operation.

- Works with listed SPERA Series Fire Alarm Control Panels.

- Easily configured using DIP switches.

- One isolated input from the host panel.

- Five Class B (Style Y) or Class A (Style Z) synchronized output circuits.

- DC regulated outputs.

- Configurable AC Power fail delay.

- Ground fault enable or disable.

- Option available on configuration to enable or disable the battery charger on activation.

- Outputs individually controllable.

- Separate Relay for Ground Fault and Common Trouble available on terminals.

- Horn/Strobe synchronization protocols.

- Two-wire horn/strobe Sync Mode allows audible notification appliances (horns) to be silenced while visual notification appliances (strobes) continue to operate.

- Audible signals may be configured for Steady, Temporal Code, California Code and March Time.

- Output circuits four and five can be configured to provide auxiliary power for four-wire detectors or door holders.

- Output fault notification to fire alarm control panel.

- Ability to sync outputs for multiple NFU-PS-10A units.

- 2.5 Amp max. current per output.

- 1.7 Amp auxiliary power output.

- Built-in charger for sealed lead acid or gel type batteries.

- Unit includes power supply, charger, red door, black backbox, transformer and battery leads.

- Compatible with any UL listed 24VDC conventional fire alarm control panel to provide Notification Appliance Circuit expansion.
