Trung tâm báo cháy 1 Loop NOTIFIER NFS320-E
Giá: Liên hệ
-
Mã sản phẩm: NFS320-E
- Bảo hành: 12 tháng
- Xuất xứ: Mỹ
- Nhãn Hiệu: Notifier
trợ giúp tư vấn khách hàng
024.62810015
0914 348 397 - 0326975555

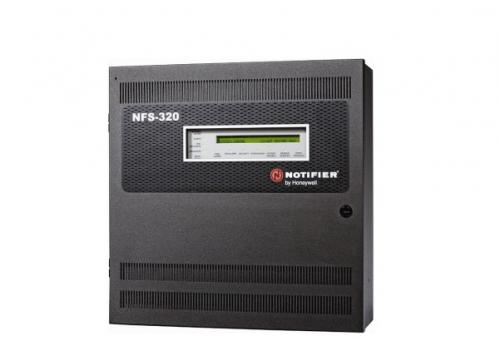

Trung tâm báo cháy 1 Loop NOTIFIER NFS320-E
- The NFS-320E intelligent Fire Alarm Control Panel is part of the ONYX Series of Fire Alarm Controls from NOTIFIER. In stand-alone or network configurations, ONYX Series products meet virtually every application requirement.
- Listed to UL Standard 864, 9th edition.
- One isolated intelligent Signaling Line Circuit (SLC) Style 4, 6 or 7.
- Up to 159 detectors (any mix of ion, photo, thermal, or multi-sensor) and 159 modules (Addressable pull stations, normally open contact devices, two-wire smoke, notification, or relay). 318 devices maximum.
- Standard 80-character display.
- 6.0 amp power supply with four Class A/B built-in Notification Appliance Circuits (NAC). Selectable System Sensor, Wheelock, or Gentex strobe synchronization.
- Built-in Alarm, Trouble, Security, and Supervisory relays.
- VeriFire® Tools online or offline programming utility. Upload/Download, save, store, check, compare, and simulate panel databases. Upgrade panel firmware.
- Autoprogramming and Walk Test reports.
- Optional universal 318-point DACT.
- 80-character remote annunciators (up to 32).
- EIA-485 annunciators, including custom graphics.
- Printer interface (80-column and 40-column printers).
- History file with 800-event capacity in nonvolatile memory, plus separate 200-event alarm-only file.
- Alarm Verification selection per point, with tally.
- Autoprogramming and Walk Test reports.
- Presignal/Positive Alarm Sequence (PAS).
- Silence inhibit and Auto Silence timer options.
- NAC coding functions:
+ March time.
+ Temporal.
+ California two-stage coding.
+ Canadian two-stage.
+ Strobe synchronization.
- Field-programmable on panel or on PC, with VeriFire Tools program check, compare, simulate.
- Full QWERTY keypad.
- Battery charger supports 18 – 200 amp hour batteries.
- Non-alarm points for lower priority functions.
- Remote ACK/Signal Silence/System Reset/Drill via monitor modules.
- Automatic time control functions, with holiday exceptions.
- Surface Mount Technology (SMT) electronics.
- Extensive, built-in transient protection.
- Powerful Boolean logic equations.
Thông số kỹ thuật
- Primary input power, CPU-320E board: 220/240 VAC, 50/60Hz, 1.5A.
- Total output 24V power: 6.0 A in alarm.
- Standard notification circuits (4): 1.5 A each.
- Resettable regulated 24V power: 1.25 A.
- Two non-resettable regulated 24V power outputs:
+ 1.25 A
+ 0.50 A.
- Non-resettable 5V power: 0.15 A.
- Battery charger range: 18AH – 200AH. Use separate cabinet for batteries over 25 AH.
- Float rate: 27.6V.
