Model

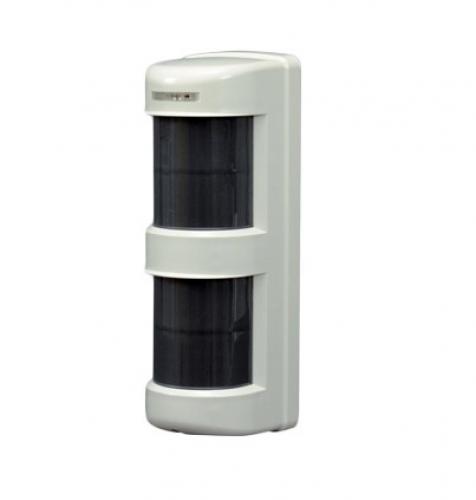

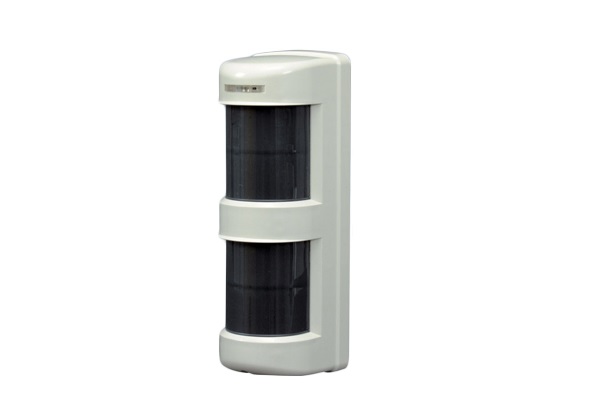

TX-114FR

Detection system

Passive infrared

Coverage

When horizontal detection Angle: 90°

Detection distance: 40ft (12m)

Horizontal zone: 7 zones

Downward zone: 7 zones

x2

Coverage adjustment

Horizontal: 90 degrees Detection distance:10ft to 40ft (3m to 12m)

(Adjustable by changing the vertical angle of downward curtain)

Supply voltage

3V to 9VDC Alkaline or Lithium Battery

Operation voltage

2.3V to 10VDC

Current consumption

35μA

5mA/3V (Test mode)

Operation

Solid State Switch N.C./N.O. selectable

10VDC, 0.01A Max

Alarm output

One shot output when detecting human beings (approx. 2sec)

Tamper output

Real time output

when the cover is detatched from the unit

when the unit is detatched from the installed wall or pole.

Trouble output

Real time output when the unit suffers

functional trouble. (from terminal of Alarm)

Operation LED

Red LED

Blinking for approx.1min at warming-up

Lighting for 1sec at detection during walk-test (LED lights only in a test-mode)

Blinking when trouble alarm is issued (Lights once every 5 sec)

Sensitivity adjustment

Approx. 30% to 170% (by rotary switch)

Pulse count

Once/Three times selectable (by dip switch)

Alarm prohibition time

10sec/120sec/300sec/900sec selectable (by dip switches)

Detection mode

AND/OR selectable

Ambient temperature

-4°F to +122°F (-20°C to +50°C)

Mounting position

Indoor/Outdoor (Wall or Pole)

Weight

620g
